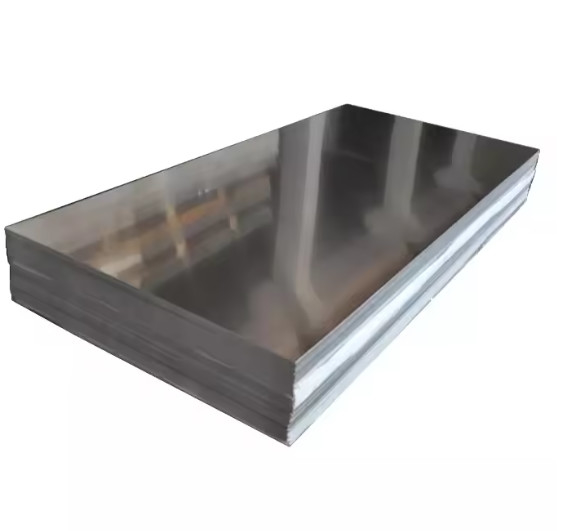

| Product Name | Stainless Steel Sheet | |||
| Thickness(mm) | 0.3-120mm | |||
| Width(mm) | 1000 x2000, 1219x2438, 1500x3000, 1800x6000, 2000x6000mm or as you requied | |||
| Length | customized | |||
| Standard | ASTM, JIS, DIN, AISI, KS, EN,etc | |||
| Surface treatment | No. 1, No. 4, No. 8, HL, 2B, BA, Mirror,etc | |||
| Type | coil/sheet/strips/plate | |||

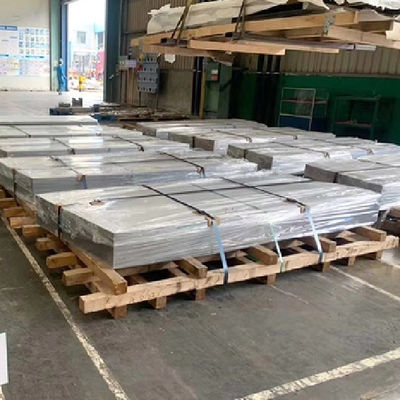

Package |
Standard export package, such as wooden box or as required. | |||
| Export wooden pallets, craft paper, anti-blushing agent. | ||||
| Delivery time | 1.The products in stock will delivery immediately received the payment. | |||
| 2.According to the order quantity, prompt delivery. | ||||
| Chemical Composition | |||||||
| Grade | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Ni | Cr |
| 201 | 0.15 | 1 | 5.50-7.50 | 0.5 | 0.03 | 3.50-5.50 | 16.00-18.00 |
| 202 | 0.15 | 1 | 7.50-10.00 | 0.5 | 0.03 | 4.00-6.00 | 17.00-19.00 |
| 304 | 0.08 | 1 | 2 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.03 | 1 | 2 | 0.045 | 0.03 | 8.00-12.00 | 18.00-20.00 |
| 309 | 0.2 | 1 | 2 | 0.04 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 309S | 0.08 | 1 | 2 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 310 | 0.25 | 1 | 2 | 0.04 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 310S | 0.08 | 1 | 2 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 316 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316L | 0.03 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316Ti | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 410 | 0.15 | 1 | 1 | 0.04 | 0.03 | 0.6 | 11.50-13.50 |
| 430 | 0.12 | 0.12 | 1 | 0.04 | 0.03 | 0.6 | 16.00-18.00 |
| Surface Finish of Stainless Steel Sheet | ||
| Surface Finish | Definition | Application |
| No.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| No.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Electric equipment, Building construction. |
| Hairline | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| BA/8K Mirror | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building const |
Our products
201 Stainless Steel
Copper content: J4>J1>J3>J2>J5.
Carbon content: J5>J2>J3>J1>J4.
Hardness arrangement: J5, J2>J3>J1>J4.
The order of prices from high to low is: J4>J1>J3>J2, J5.
J1(Mid Copper): The carbon content is slightly higher than J4 and the copper content is lower than J4. Its processing performance is less thanJ4. It is suitable for ordinary shallow drawing and deep drawing products, such as decorative board, sanitary products, sink,product tube, etc.
J2, J5:Decorative tubes: Simple decorative tubes are still good, because the hardness is high (both above 96°) and the polishing is morebeautiful, but the square tube or the curved tube (90°) is prone to bursting. In terms of flat plate: due to the high hardness, the board surface is beautiful, and the surface treatment such as frosting, polishing and plating is acceptable. But the biggest problem is the bending problem, the bend is easy to break, and the groove is easy to burst. Poor extensibility.
J3(Low Copper): Suitable for decorative tubes. Simple processing can be done on the decorative panel, but it is not possible with a little difficulty. There is feedback that the shearing plate is bent, and there is an inner seam after breaking (black titanium,color plate series, sanding plate, broken, folded out with inner seam). The sink material has been tried to bend, 90 degrees, but it will not continue.
J4(High Copper): It is the higher end of the J series. It is suitable for small angle types of deep drawing products. Most of the products that require deep salt picking and salt spray test will choose it. For example, sinks, kitchen utensils, bathroom products, water bottles, vacuum flasks, door hinges, shackles, etc.
304 Stainless Steel
304 is a versatile stainless steel that is widely used to make equipment and parts that require good overall performance (corrosion resistance and formability). In order to maintain the inherent corrosion resistance of stainless steel, steel must contain more than 18% chromium and more than 8% nickel.
316 stainless steel
316 stainless steel has excellent corrosion resistance, atmospheric corrosion resistance, and high-temperature strength due to the addition of Mo, which can be used under harsh conditions; excellent work hardening (non-magnetic). Equipment for seawater use,chemical, dye, papermaking, oxalic acid, fertilizer and other production equipment; photographs, food industry, facilities incoastal areas, ropes, CD rods, bolts, nuts.
430 stainless steel
Type 430 Stainless Steel is perhaps the most popular non-hardenable ferritic stainless steel available. Type 430 is known for good corrosion, heat, oxidation resistance, and its decorative nature.It is important to note that when well polished or buffed its corrosion resistance increases. All welding must occur at higher temperatures, but it is easily machined, bent, and formed. Thanks to this combination it is used in a number of different commercial and industrial applications including:Furnace combustion chambers,Automotive trim and molding,Gutters and downspouts,Nitric acid plant equipment,Oil and Gas refinery equipment,Restaurant equipment,Dishwasher linings,Element supports and fasteners.etc.
Factory
Partner
1. who are we?
Xinjinlai Metal Products is a professional steel supplier engaged in the sale and service. Our company mainly sells carbon steel, stainless steel, aluminum alloy, galvanized steel, etc . We are located in Wuxi city, with convenient transportation access.
2. Do you handle powder coating yourself?
Yes, we are a professional sheet metal fabrication factory providing full set of manufacturing service including laser cutting,NCT punching, bending, welding, grinding, belt polishing, powder coating & paint coating,silkscreen.
3. how many tons one 20 GP or 40 GP could load?
One 20 GP could load about 20 tons. And 40 GP load about 24 tons.
It depends on the different specification.
